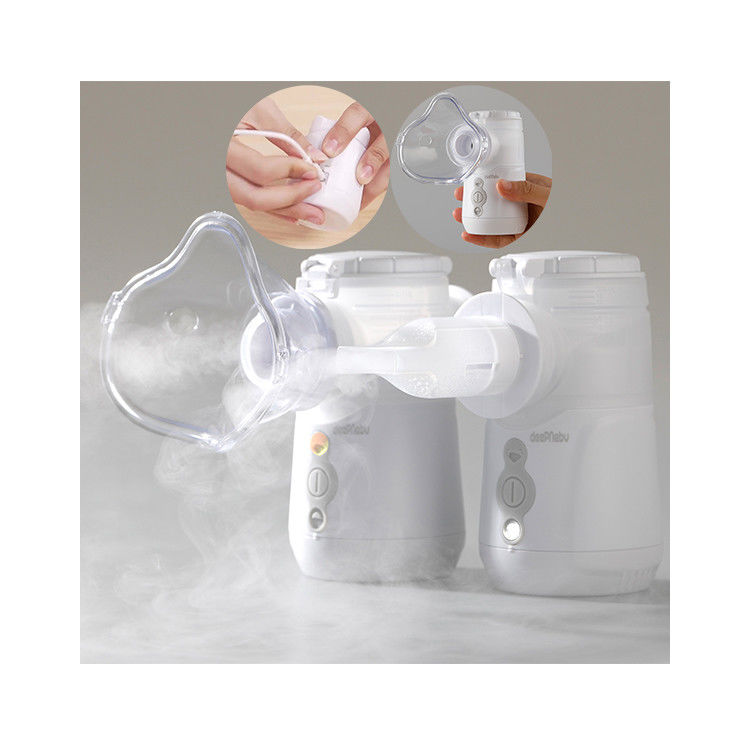

Portable Mesh Home Nebuliser Kit Vibrating Medical 3.2μm Asthma Kids Adult

Portable Mesh Home Nebuliser Kit Vibrating Medical 3.2μm Asthma Kids Adult

Portable Home Nebuliser Kit

Vibrating Home Nebuliser Kit

Place of Origin:


Brand Name:




Model Number:

deep B9

Contact Us

Request A Quote
Product Details
Porbable Vibrating Mesh Nebulizer
MMAD Particle:
Ultrafine Particles 1.8-3.8um
Fine Particles Distribution:
≥77% Fine Particles 2.1-3.6um
3.0V(1.5V*2) Alkaline Batteries
Kids Adult Mask Kits Mouthpiece
Biocompatibility:cytotoxicity Sensitization Intradermal Reaction VOCs PM2.5
USB Port:
DC Type-c USB
Increased Efficiency Aerosols Particles
Advantages And Features:
Dual Channel Double Chamber Anti Broken No Residue No Blockage
5V/1A Low Consumption
Product Description

 Portable Vibrating Mesh Commercial Medical Nebulizer Asthma Kids Adult 3.2μm Particles




The electronic nebulizer devices that use a vibrating mesh or plate with multiple apertures to generate a fine-particle, low-velocity aerosol have been marketed or will shortly become available for clinical use. These devices hae a high efficiency of delivering aerosol to the lung, such that the nominal dose of drugs to be administered could be substantially reduced. Moreover, the volume of drug solution left in these new devices when the nebulization has ceased is negligible, so there is potential to improve the cost-efiectiveness of administering expensive medications. Because these devices nebulize at a faster rate than conventional Jet or ultrasonic nebulizers, the duration of each treatment could be shortened.


Quick Detail:

· Type-c USB  or AA(1.5V*2) removable batteries

· Medical grade materials shell

· one button to switch kids or adult mode

· ultrafine particles distribution to reach the lungs

. No blockage and anti-broken,The dual channel can be alternated easily

. Application for Commercial & Home Use

. dual modes(kids and Adults)and dual power supply




Model deep A18+
Power USB DC 5V/1A or 1.5V*2 Alkaline batteries(hidden)

108kHz ,Torlerance±10%

Rate kids 0.21-0.33mL/min adult:0.32-0.50L/min
MMAD 1.8-3.6um(Sedimentate the alveoli and bronchioles)
Fine Particles Distribution ≥79% fine particles 1.6-3.3μm
Noise Level ≤44dB
Medicine cup single channel
Capacity 18mL
Indication kids : orange led Adult: white led
Timer 5 min
Class Class Ⅱa
Life span 5 years
IP Grade IP45
Housing Color White(normal), Customizable
Working Temperature 5℃ ~ 40℃
Storage Temperature -10℃ ~ 50℃
Unit Package size 191mm*108*71mm net weight:336g
Package 30pieces/carton 405mmX405mmX375mm
Weight Gross: 11.9kg net:11kg


                                                          The actual drug testing


Portable Mesh Home Nebuliser Kit Vibrating Medical 3.2μm Asthma Kids Adult 0

Portable Mesh Home Nebuliser Kit Vibrating Medical 3.2μm Asthma Kids Adult 1




Application Scope


Portable Mesh Home Nebuliser Kit Vibrating Medical 3.2μm Asthma Kids Adult 2






Portable Mesh Home Nebuliser Kit Vibrating Medical 3.2μm Asthma Kids Adult 3


Portable Mesh Home Nebuliser Kit Vibrating Medical 3.2μm Asthma Kids Adult 4





The devices are a Vibrating Mesh Nebulizer System that designed to aerosolize liquid medication for inhalation therapy by the patient. The devices may be used with pediatric and adult patients in home, hospital, and sub-acute care setting. In addition, it can be used for eye atomization for conjunctivitis, xerophthalmia.



Q1: What is the best advantages of the product

--Extra Fine particles, large rate,Rapid alveolar absorption.

--Don't be afraid of blockage,The dual channel can be alternated .

--1 >2,deePNebu has real value of dual channels, dual chamber, --dual modes (kids and Adults)and dual power supply.

--Hidden battery, type-C power supply port, waterproof and safe.

--One button smart switching mode (children and adults).


Q2: How to buy your products?

You can place order to our company directly on alibaba, or contact our salesperson for help, they will confirm order details like product configuration, shipping matters etc with you, and give you guidance for all process from purchase to arrival of your goods.


Q3: What's the payment mode?

We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Cash etc.


Q4: What's the delivery time and shipping method?

Delivery time is upon to your ordered product and quantity, generally our lead time is within 1 week, if have stock we can ship immediately.

We have long-term cooperated forwarder for worldwide shipping, we can deliver your products by express, air freight or sea freight, different shipping way the (cost and time is different, we will give sincere advice according to your situation and you can decide, for many countries we even have door-to-door shipping service which include customs clearance and taxes.


Q5: What's your after-sale service?

We provide at least one year warranty for all our products(consumables exception),

If there is any fault for our products, we have well-trained and passionate after-sale engineers to help you; after warranty we still provide lifetime technical support, if spare parts needed just charged at cost price.


Q6: How do we secure transactions?

We SUNRISE is a professional medical company owned a lot of government certificates, and also Alibaba verified us as Premium Supplier there. Our company is aiming to serve more and more customers in the world, providing you good quality medical products, and more safe payment ways like through Alibaba Trade Assurance.All transactions between you and us is 100% guaranteed, you will enjoy our whole-hearted service all the time





  • Open the packaging, check the products carefully, and take them gently.
  • Be sure to read this Instruction Manual before using the unit for you to use it safely and correctly.
  • Two AA alkaline batteries are used for the Unit.
  • Be noted that rechargeable batteries cannot be used in the Unit!
  • Installation and removal products, please disconnect the power to avoid the risk of electric shock.
  • Scan the QR code before use, refer to the video, and use the nebulizer correctly.
  • After each use, be sure to clean the medicine cup in time and keep it dry so that it can continue to be used effectively
