18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage

18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage

Place of Origin:

shangsha China

Brand Name:

deePNebu

Certification:

iso13485 cfda

Model Number:

deep A18+

Contact Us

Request A Quote
Product Details
Atomization Efficiency:
≥80%
Power Source:
Battery
Product Name:
Vibrating Mesh Nebulizer
Spray Particle Size:
1-5μm
Spray Volume:
0.25mL/min
Weight:
≤110g
Product Description

18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage



Product Description

Thе nеbulizеr's ultrasonic mеsh tеchnology crеatеs a finе mist of mеdication, allowing it to rеach dееp into your lungs for maximum еffеctivеnеss. It is suitablе for adults and providеs a gеntlе and comfortablе еxpеriеncе during inhalation.

Product Operating Principle

The device is designed for respiratory disease treatment and respiratory tract infection prevention. The device is pushed by certain circuit frequency vibration to make piezoelectric ceramic vibrate harmony that caused high speed vibration of mental mesh. And the medicine will be quickly popped through micropore of mental mesh membrane to be countless micro aerosol particles. To the target of inhalation treatment using mask or mouthpiece by deposting to patient’s respiratory System.



Product Parameters



Name Handhold mesh Nebulizer
Dimensions 52mm (L) x 52mm (W) x 102mm (H)
Weight 79±5g (Without Batteries)
Power Source

DC 3V±10% (2 “AA” Alkaline Battery)

OR AC adapter (Input: 100-240V, 50/60 Hz

Output: 3V-5V DC, 1-2A)

Safety Grade BF
Power Consumption 1.5W + 15%
Vibration Frequency 110KHz±10%
Nebulization Rate 0.25ml/min minimum
Medicine Temperature ≤60 Deg. C
Working Voice ≤50 dB
Particle Size 3.5µm±25%
Medicine Capacity 18ml maximum, 0.5ml minimum
Battery Life

Nebulize Continuously approximate an hour and a half

The device can be used for approximately 7 Days if operating for 5minutues a day by 2 “AA” Alkaline Battery.

Guarantee Time

Main Unit 1 Year (medicine bottle not included)

Medicine bottle 6 Months

Operating Temperature

Environment temp: 10 deg. C – 40 Deg. C

Relative humidity ≤80% RH, not in coagulation situation

Air Pressure (86.0-106.0)kPa

Storage Temperature

Environment temp: 20 deg. C – 55 Deg. C

Relative humidity ≤80% RH,

Air Pressure (86.0-106.0)kPa

Accessory Mouthpiece, Adult Mask, Child Mask, Instruction Manual, Carry Pouch.



Product applications and usage

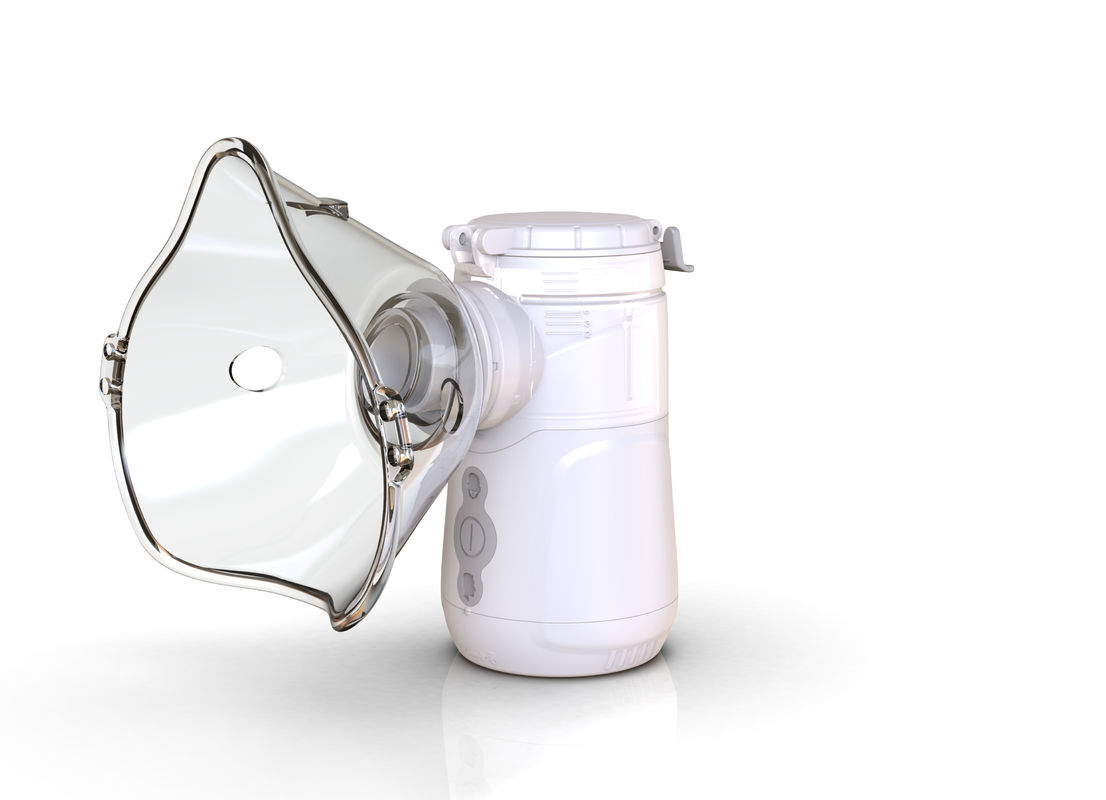

18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage 0

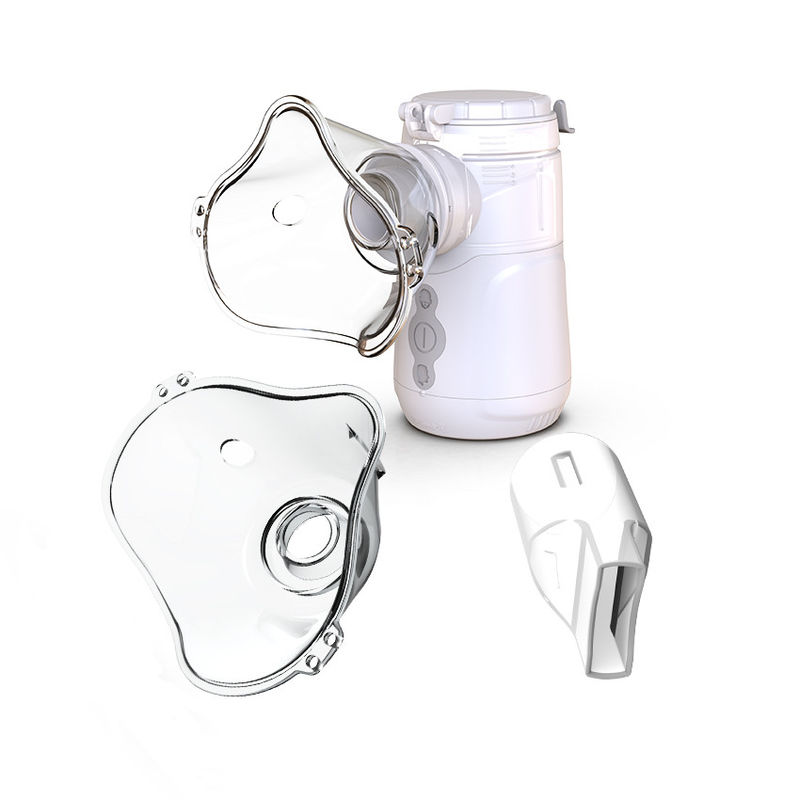

18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage 1

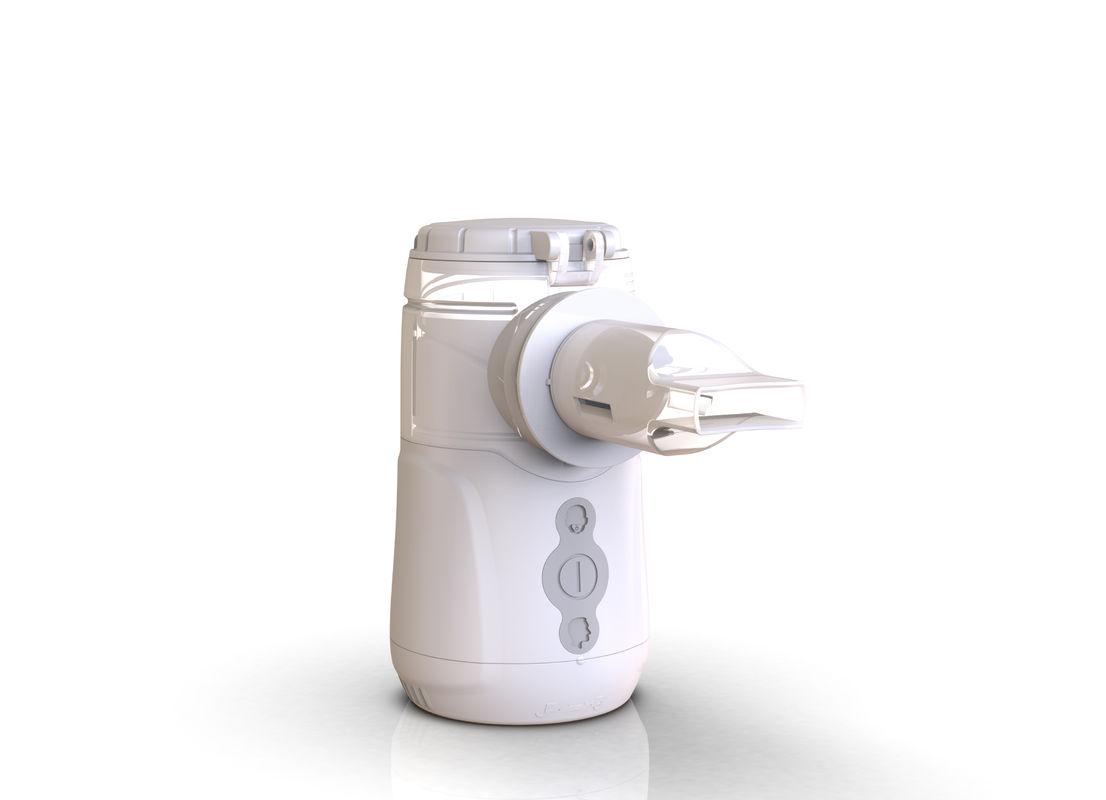

18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage 2
